A high performance, cost effective stepper motor driver to implement intelligent stepper motor control.
The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density.
Features:
0.3 To 7 Amps Phase Current 24V To 80V Power Supply 10 Microsteps Per Step Size 11 To 42 Motors Mid-Band Resonance Compensation Low-Speed Resonance Nulling Trimpot Auto Current Reduction 200 KHz Max Step Rate Opto-Isolated Step And Direction Inputs 20W Dissipation At 7A Per Phase 20KHz Master Oscillator PWM 0C To 70C Operating Temperature LED Power Indicator

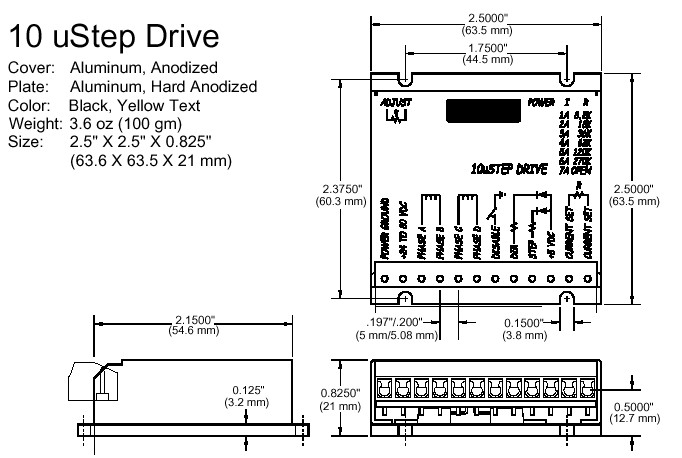

Small Size: 2.5" by 2.5" by 0.82" (63 mm By 63 mm By 21 mm) Light: 3.6 Oz (100 gm) Anodized Aluminum Package Modular 2-Piece Main Connector
