Solenoid, 120VAC, Pull Type
item #: SOACL031041120C



Availability:   in stock - available for immediate shipment


Unit Price:
1-4 pieces: $103.60
5-9 pieces: $95.04
10-24 pieces: $89.03
25-49 pieces: $86.07
50-99 pieces: $84.01
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


Special Comments



Quantity adjustment on next page

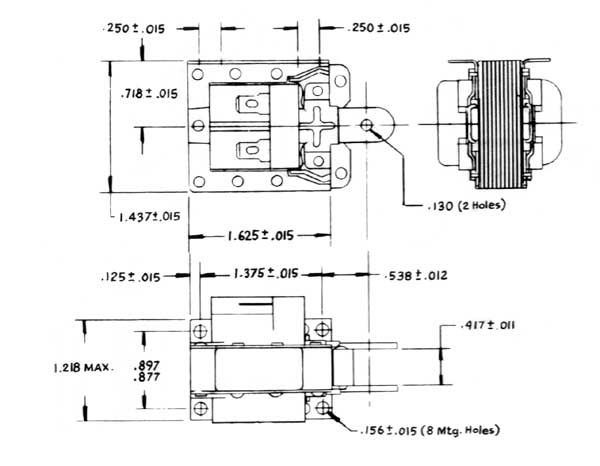

A.C. Laminated Solenoid, Pull type, 120 VAC 60 Hz, Continuous(100%) Duty, 1.22"(31 mm)W X 1.44"(37 mm)H X 1.63"(42 mm)L.
Mounting: Eight holes on the body.
Internal Resistance = 85 Ohms
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate

Force at 0.10" (2.5 mm) stroke: 52.0 Oz (1474 gr)
Force at 0.50" (12.7 mm) stroke: 23.0 Oz (652 gr)
Force at 1.00" (25.4 mm) stroke: 4.0 Oz (113 gr)
